Selection Tool

From Audacity Development Manual
Jump to: navigation, search
The easiest way to select a region of audio is to use the Selection Tool
Selection tool for selecting audio before modifying it.Envelope tool for modifying loudness of audio.Draw tool for changing the values of individual samples.Zoom tool to zoom in or out.Time Shift tool to move audio clips into new positions.Multi-Tool combines the actions of all five tools.ToolsToolbarIBeam.png

The image above shows the Tools Toolbar with the Selection Tool selected.

  • Click on this link to learn more about the Tools Toolbar.
  • Click on other tools in the image to learn more about those tools.

If it's not already selected, choose the Selection tool IBeam tool from Tools Toolbar, as shown above. Next click the left mouse button anywhere inside of an audio track, then drag (in either direction) to the other edge of your selection, and release.

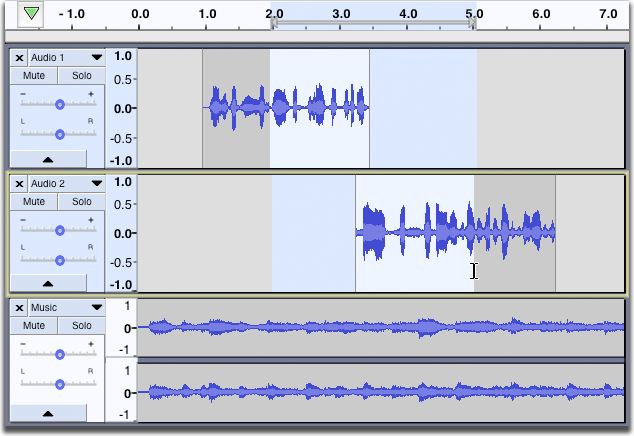

Normally, you select both the tracks and the range simultaneously, by clicking and dragging. For example, to create the selection in the image below, make sure you're using Selection Tool IBeam tool, click in the track just after 2.0 seconds in the first track, then drag rightwards to just after 5.0 seconds as displayed on the Timeline, then downwards so that the gray selection region now includes the second track:

SelectionToolExample 220.png

Note that because the drag started in the first track and extended into the second track, only those two tracks are selected, as indicated by the blue-gray background color of the Track Control Panel. Therefore, any operation you perform will now only affect the selected area of the first two tracks.

This, and the method for selecting all audio are enough for using selections in Audacity.

Many more options for selecting audio are described on the Audacity Selection page.
